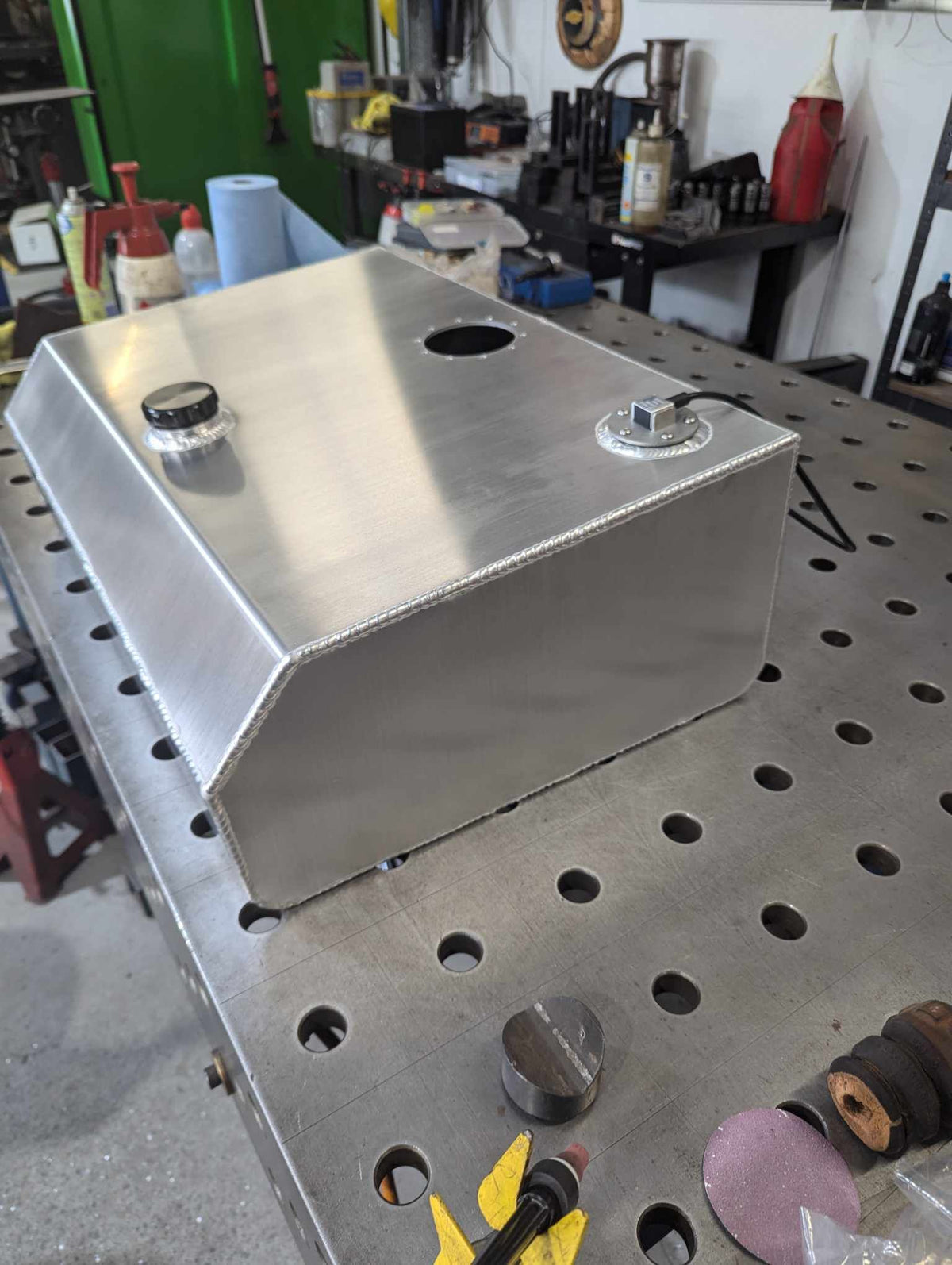

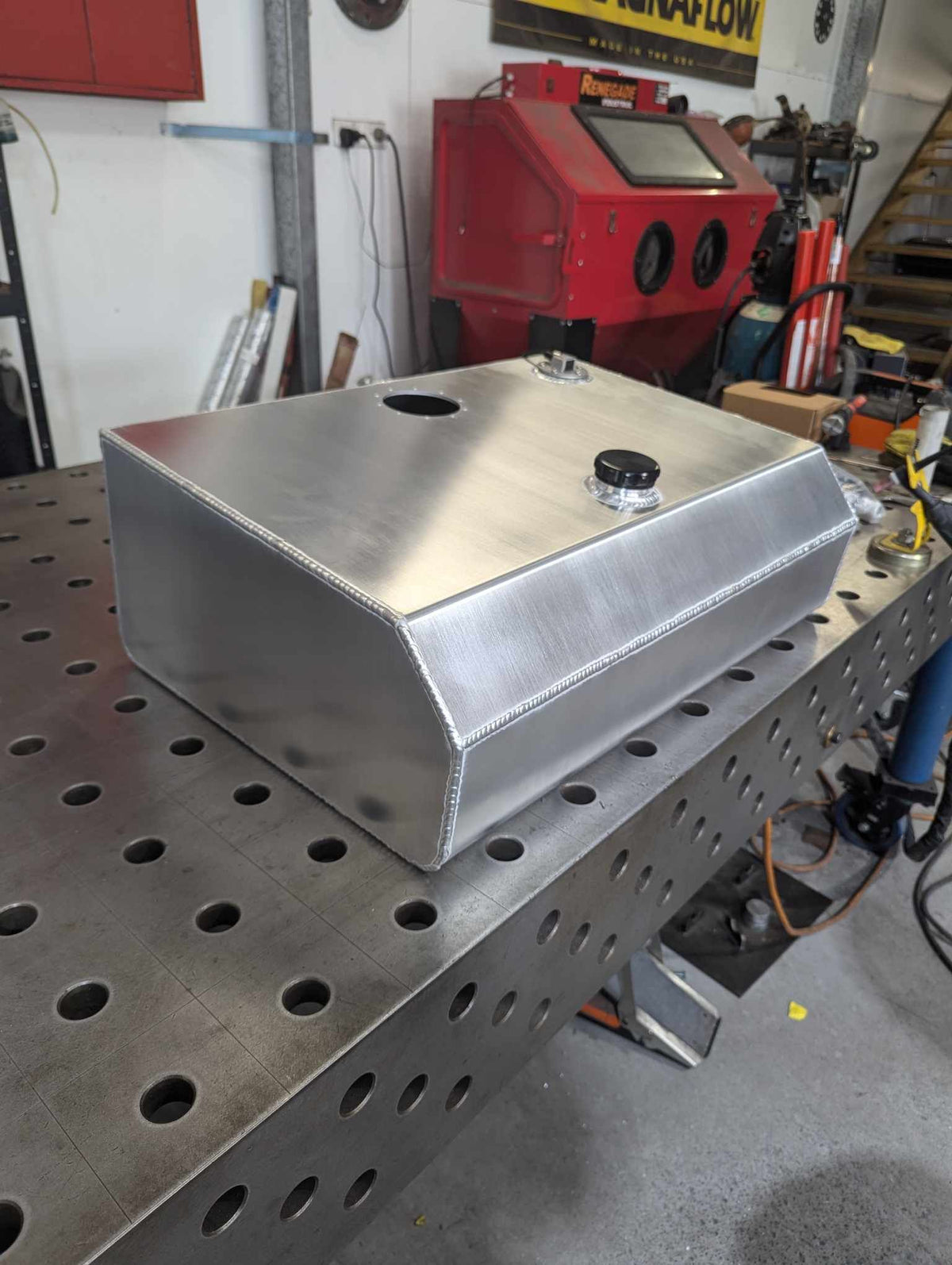

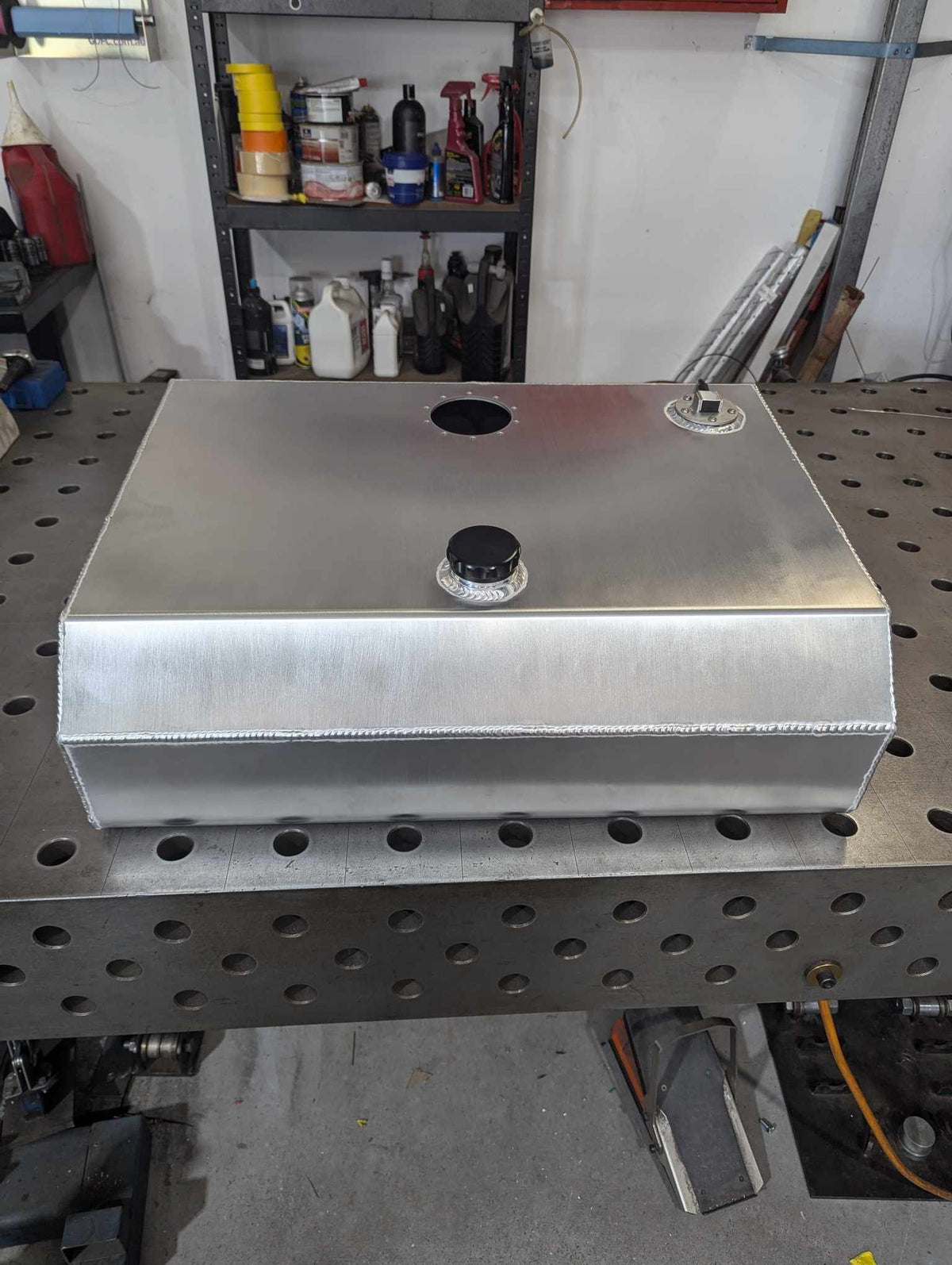

63-72 C10 Bed Fill EFI Fuel Tank

Want the new fuel tank that is the perfect fit for your C10 pickup.

Cad designed, laser cut and CNC folded

Fully tig welded and pressure tested

4mm aluminium

Interlocking baffle design

2 -8 weld on fittings (vent and return)

Billet fuel filler cap

Fuel sender 0-90 ohm

Approx 72 litres

Tank Dimensions 675 x 485 x 255

Setup for Aeromotive fuel pump hanger
Single pump #18329
Double pump #18309
Triple pump #18311

Note: Mounting tab brackets not shown on some photos
