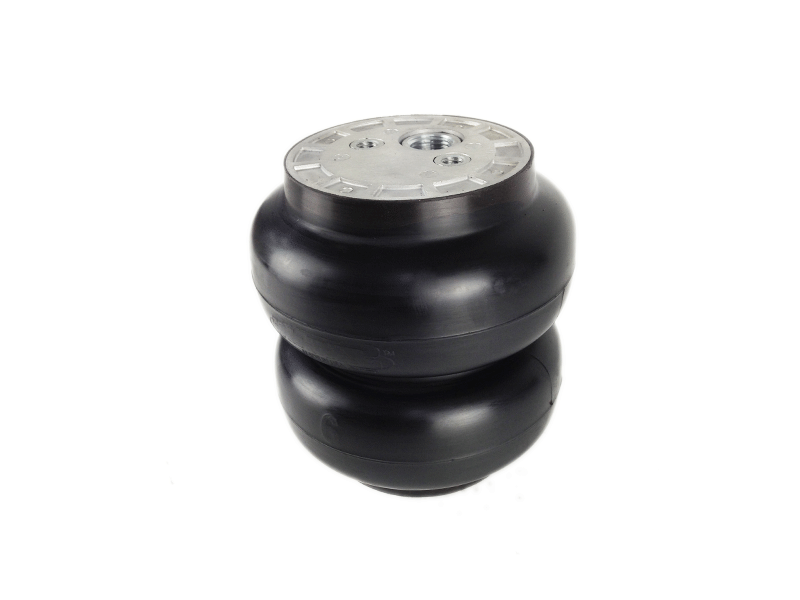

SLAM SPECIALTIES air springs are technologically advanced in all areas of design and performance. Bolt pattern compatible with Firestone and other air springs
-
Rated at much higher pressures - critical for front end installations on heavy V8 vehicles
-
Non-ballooning, stiffer bellows ensure that more force is exerted through the centerline of the airspring to lift the vehicle straight up - this is an important feature of bellow design as the front control arms are at a "mechanically disadvantaged point" when the vehicle is lowered.
-
Superior end plate design to all other airsprings making it virtually impossible for separation to occur even when unrestrained at maximum pressure!
-
Unique internal bump stop prevents rubber bellow damage from constantly deflating airspring to zero pressure (see image below)
Capacity per airspring @ 110psi = 2800lbs
- 6″ diameter bag
- Rated @ 200psi
- Minimum height = 2.9"
- Installed height approx = 6.0"
- Maximum height = 10.0"
- Single 1/2" port
- Internal bumpstops
- Non-ballooning design
- (2) 3/8″-16 Mounting Holes Top
- (3) 3/8″-16 Mounting Holes Bottom
- Chemically bonded aluminum/zinc end closure plates
- Replaces: 255c/2500
- Sold Individually
- Designed & Manufactured by Slam Specialties
- Made in the USA
